INTRODUCTION

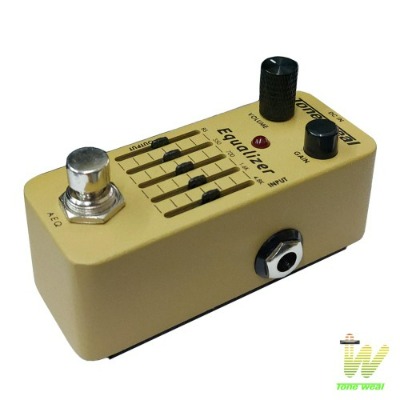

Made in Taiwan, Part of the MINI pedal series, the Equalizer AEQ is an accurate frequency of vintage sour and pro-quality tones with a compact box to compensate and increase your acoustic guitar tone frequency insufficient. It features 5-Bands controls of ISO frequency, master volume boosts button; can be increased instantly to compensate for the shortage. A true bypass switch provides the shortest, direct cleanest tone Analog circuitry offers players a warm, classic, and full-sounding AEQ tone.

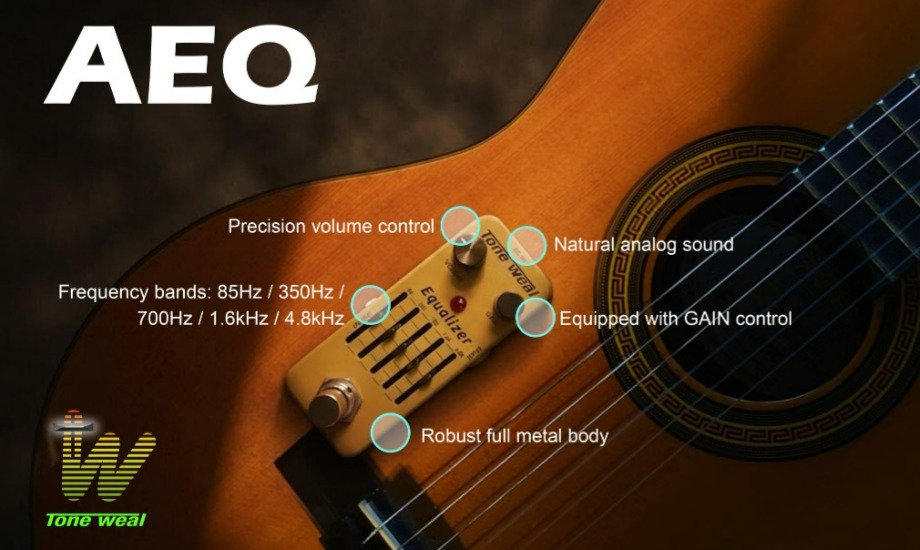

FEATURES
- Professionally enhance the tone quality of the acoustic guitar barrel
- Pro-quality tones with precise frequency point
- 5-Band graphic equalizer with master volume enhance button
- +18dB adjustable gain range per band
- Full metal shell Small and exquisite
- True Bypass

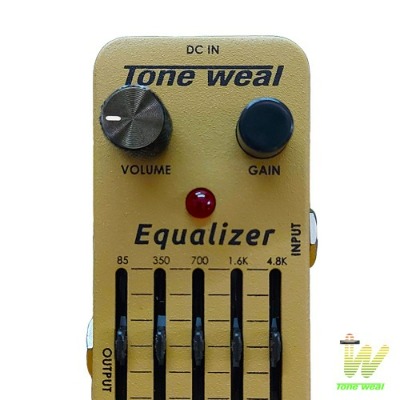

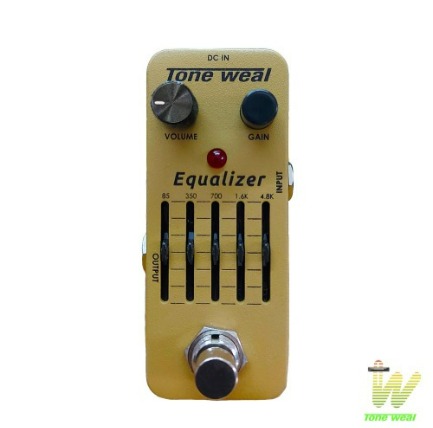

CONTROL GUIDE
- VOLUME: Adjust the level of output
- DC IN: For power supply, use a 9-volt DC regulated AC adapter
- GAIN: Push this button for increase output level 6Bd gain.
- INPUT: This input jack receives output from electric guitar
- 5-Band Slider: Adjust the level of each frequency band (-18dB/+18dB)
- PEDAL SWITCH: Toggles effect on (red LED indicator on), bypass (LED indicator off)
- OUTPUT: This output jack to AMP or other pedal unit
SPECIFICATION
Nominal Input Level................-20 dBu
Input Impedance.....................1M ohms
Nominal Output Level.............-20 dBu
Output Impedance..................100k ohms
Bypass True ...........................Hardwire
Current Draw...........................7 mA
Power Supply..........................9 V DC:
Size and Weight
Width.......................................113mm
Depth.......................................63mm
Height......................................34mm
Weight......................................0.3kg
