INTRODUCTION

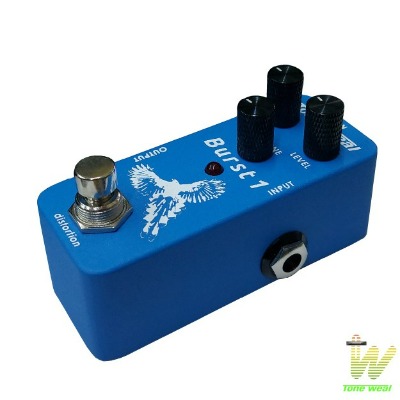

Designed /Made in Taiwan, the Burst1 Distortion, part of the MINI Pedal Series, is a vintage distortion and professional-quality tone with a three-knob control of custom analog circuit gain/level and treble and bass tone boost. High rendering impact, similar to the well-known classic heavy metal sound effects, providing high-explosive and full-sounding sound effects for hobby metal players, real bypass switch, classic analog circuit design can provide the shortest, most direct, and cleanest sound.
FEATURES
- Tone weal designed approximate well-known classic heavy metal distortion sound
- The innovative gain circuit produces high rendering and explosive tone
- Ultra impact tone
- True hardwire bypass

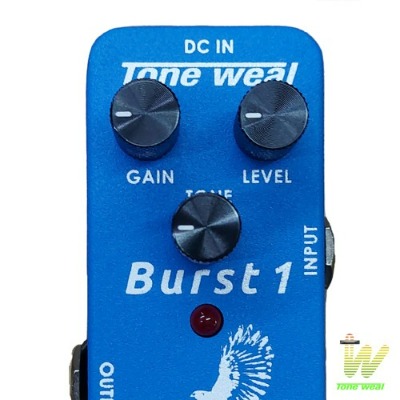

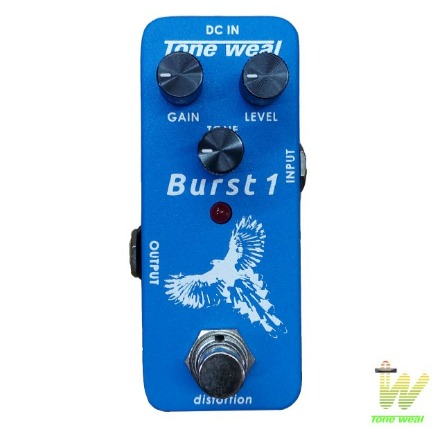

CONTROL GUIDE
- GAIN: This knob controls the intensity of the distortion effect
- DC IN: For power supply, use a 9-volt DC Pedal dedicated adapter
- LEVEL: This knob adjusts the volume of the effect sound
- INPUT: This input jack receives output from electric guitar
- PEDAL SWITCH: Toggles effect on (red LED indicator on), bypass LED indicator off)
- OUTPUT: This output jack to AMP or other pedal unit
- TONE: This knob controls the tone of the effect sound at High/low frequencies
SPECIFICATION
Nominal Input Level.............-20dBu
Input Impedance...................1M ohms
Nominal Output Level............-20dBu
Output Impedance.................100k ohms
Bypass True................................Hardwire
Current Draw.............................7 mA
Power Supply.............................9 V DC:
Size and Weight
Width.............................................113mm
Depth.............................................63mm
Height............................................34mm
Weight............................................0.3kg
